| উৎপত্তি স্থল | CHINA |
| পরিচিতিমুলক নাম | Dawnergy |
| মডেল নম্বার | SM G657A1 Natural\20pcs SC/APC-20pcs SC/UPC |

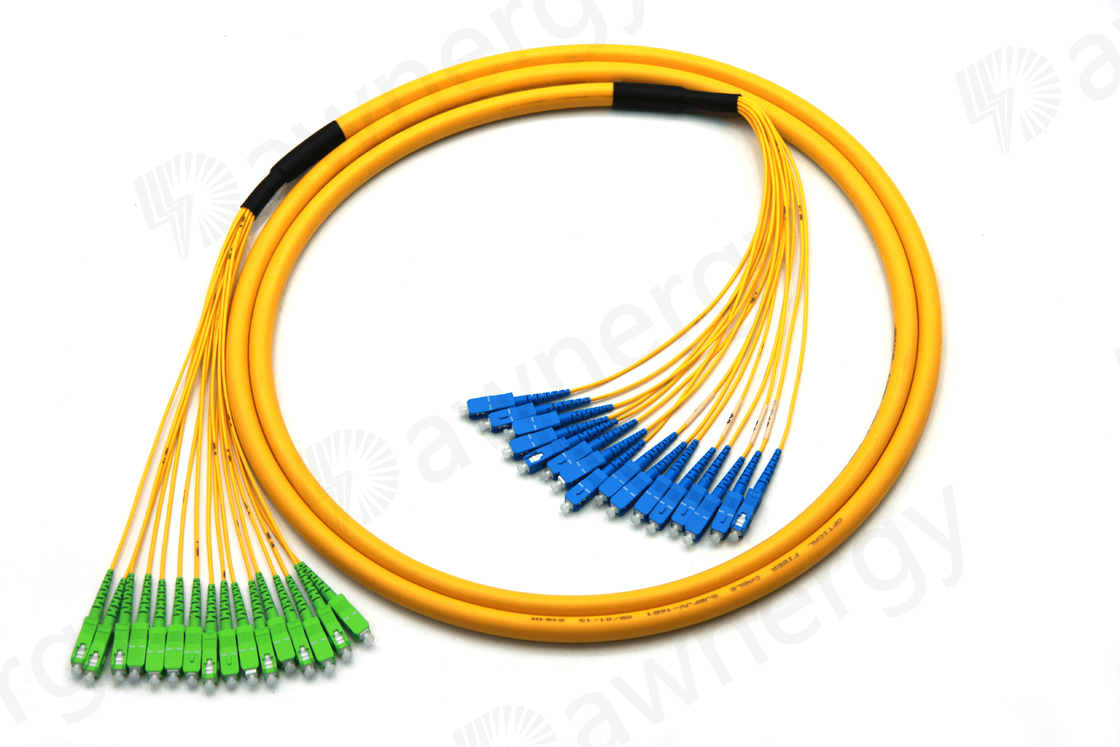

Breakout Cable Patch cord
Dawnergy’s indoor breakout fiber optic cables use φ2.0mm simplex cable (φ900um tight buffer, polyester yarns as strength member) as subunits. The subunits are stranded around a FRP central strength member. The cables are completed with a PVC jacket.
Cable Construction
Features
Application
Number Tube for Breakout
White number tube “1”~”20”
Cable Specifications
| Parameters | Specification | |
| Fiber Type | SM G657A1 Natural | |
| Fiber Count | 20 | |
| Sub-unit Cable | Tight Buffered Fiber (mm) | 0.9±0.05 PVC jacket |
| Additional Strength member | Polyester yarns | |
| Diameter (mm) | 2.0±0.05 | |
| Central Strength member | Material | FRP(1.8mm) +PVC |
| Diameter (mm) | 2.7±0.1 | |
| Outer Jacket | Material | PVC yellow |
| Diameter (mm) | 13.6±0.3 | |
| Tensile Strength (N) | Short Term | 1300N |
| Long Term | 200 | |
| Crush Resistance (N/100mm) | Short Term | 1000 |
| Long Term | 300 | |
| Bending Radius (mm) | Dynamic | 20D |
| Static | 10D | |
|
Cable Attenuation (dB/km) |
@1310nm | ≤0.4 |
| @1550nm | ≤0.3 | |
Patchcord Specifications
| Parameter | Specification |
| Connector Type | 20pcs SC/APC-20pcs SC/UPC |
| Fiber Cores | 20 |
| Insertion Loss (IL) (dB) | ≤0.3 |
| Return Loss (RL) (dB) |
≥50 (UPC) ≥60 (APC) |
| Durability (dB) | 500 times plugging |
| Temperature Range (℃) | -20~+60 |
| Material of Outer Jacket | PVC |
| Patch cord Main Cable Length (m) | 1,2,3m＋1% |
| Breakout Jacket Diameter (mm) | 2.0 |
| Breakout Length (cm) | 30＋3 |
