| উৎপত্তি স্থল | China |
| পরিচিতিমুলক নাম | Dawnergy |
| সাক্ষ্যদান | Anatel |
| মডেল নম্বার | DA-PLC-105-SCA-M |

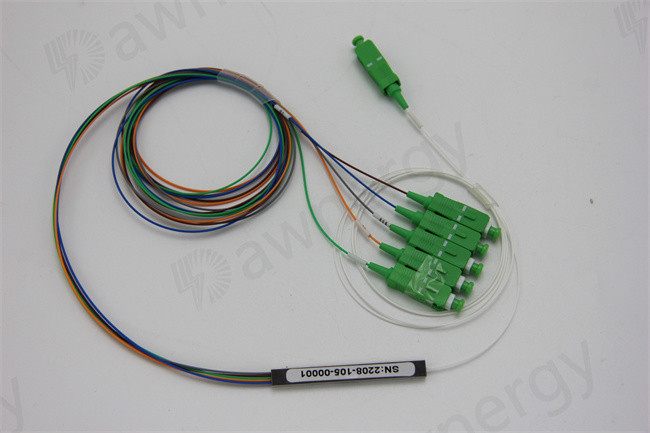

Dawnergy’s chip type uneven planar light wave circuit (PLC) splitter using special chip instead of fusion splicing, the output of the optical splitter can be divided into 70/30% or 85/15% unevenly. Asymmetrical optical splitters can reduce the consumption of optical fibers by about 50% to 80% in the network. Asymmetrical optical splitter is an excellent low-cost solution to realize fiber-to-the-home construction in medium/low density areas such as rural areas.
Features
Applications
1x5 (80/50%)
Features
Specification
| Parameters | 85/15 uneven 1X5 PLC splitter |
| Operating Wavelength(nm) | 1260~1650 |
| Insertion Loss (dB) output 1~4,8,16 | 16.5 |
| Insertion Loss (dB) output with the highest power | 1.5 |
| PDL (dB) Max | 0.2 |
| Return Loss (dB) Min | 55 |
| Directivity (dB) Min | 55 |
| Fiber Jacket Color | Customized |
| Fiber Length (m) | Customized |
| Fiber Type | ITU-T G657A1 |
| Connector Type | SC, LC or Customized |
| Number Tube Marker |
“IN” (PLC Input port) “85” or “70” (PLC higher power output port) “1~4,8,16” (PLC balance output port) |
| Operating Temperature (℃) | -40~85 |
| Storage Temperature (℃) | -40~85 |
|
Mini Module |
60x7x4 |
Notes: Measurements are done at room temperature. Connector loss is included in the above specifications.
