| উৎপত্তি স্থল | CHINA |
| পরিচিতিমুলক নাম | Dawnergy |
| সাক্ষ্যদান | CE |
| মডেল নম্বার | DA-OPM-M-V10 |

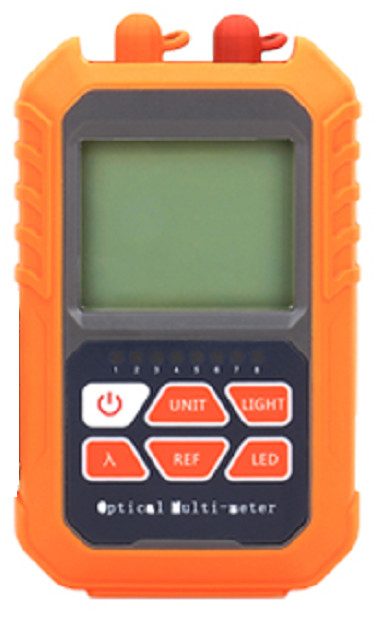

Dawnergy’s optical power meter series is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It has features of ingenious appearance, wide range of power measurement, high accuracy with high performance-to-price ratio.
Features
Applications
Specifications
| Item | Specifications |
| Type | DA-OPM-M-V10 |
| Wavelength (nm) | 800~1700nm |
| Detector | InGaAs |
| Measurement Range (dBm) | -70~+6 |
| Uncertainty (dB) | 5% |
| Calibrated Wavelength (nm) | 850,1300,1310,1490,1550,1625 |
| Display resolution (dB) | 0.01 |
| Optical Connector | SC/2.5mm universal port |
| Visual Fault Locator Module | |
| Wavelength(nm) | 650±10 |
| Output power | 5 |
| Other | |
| Power Supply | Alkaline Battery (2 AAA alkaline batteries) |
| Auto-off time | 10mins |
| Operating Temperature (℃) | -10 ~ +60 |
| Storage Temperature (℃) | -30 ~ +70 |
| Relative Humidity | 0 to 95% (non-condensing) |
| Dimension (mm) | 112 X66 X30 |
| Weight (g) | 140 |
Order Information
| Model | Name | Description |
| DA-OPM-M-V10 | Optical Power Meter | Handheld, 850,1300,1310,1490,1550,1625nm; Measurement range: -70~+10dBm; SC/2.5mm universal port; with VFL function |
