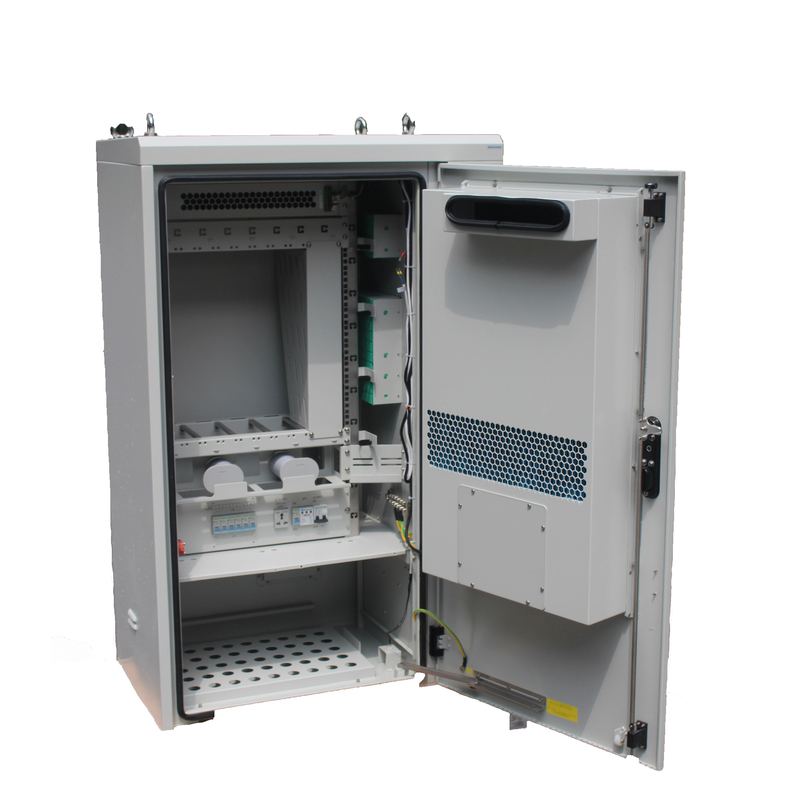

Outdoor Telecom Cabinet for Wireless Mobile Station TYG06-HE02-M1

Features

• Two-warehouse body, Device warehouse/ODF warehouse;
• A independent Battery warehouse in Device warehouse;
• 19 inch device installation;
• Cable splicing and protection function;
• Heat exchanger cooling system on the door of Device warehouse.

Specification

• Cable

• Type: bundle cable
• Inlet number:10
• Inlet direction: bottom of the body

• Equipment installation space: 10U
• Distribution capacity: Uplink maximum 48 cores, Downstream maximum 120 cores

• Battery capacity: 4×12V 100AH batteries
• Dimension: (height )1332mm×(width) 850mm×(depth)500mm

• Environmental specification

• Operating temp. range: -45℃～+50℃
• Storage temp. range: -45℃～+55℃
• Relative humidity: 5%～90%(no condensation)
• Atmospheric pressure: 62 kpa～101 kpa (approximation 0m～5000m)
• Solar radiation intensity: radiation intensity 1120×(1±10%)W/m2
• Grounding resistance: ≤10Ω
• Heat-exchange: 80W/K
